TORO BAR BLADE STD / STEP 3 X 72" CUT , REAR DISCHARGE SUITS Z597-D Z MASTER

Non-Genuine TORO Standard Type Bar Blade Suits 72" Cut Rear Discharge And Guardian Recycler Decks

TORO: 108-1958, 108-1958-03, 121-5347-03,

1/2"

12.7 mm

72" Cut.

1828 mm Cut.

182.8 cm Cut.

25 3/16"

639.76 mm

.250"

6.35 mm

2 1/2"

63.5 mm

Round

72" (1828 mm) cut TORO Groundsmaster 360, 3280-D, 3320, 3400, 7200 and 7210 traction unit models when fitted with model number 31335 Guardian Recycler decks or model numbers 30303 and 30353 rear discharge decks and Z Master Z597-D (model 74281TE) when fitted with a 72" (1828 mm) cut rear discharge deck.

3 blades required for 72" cut.

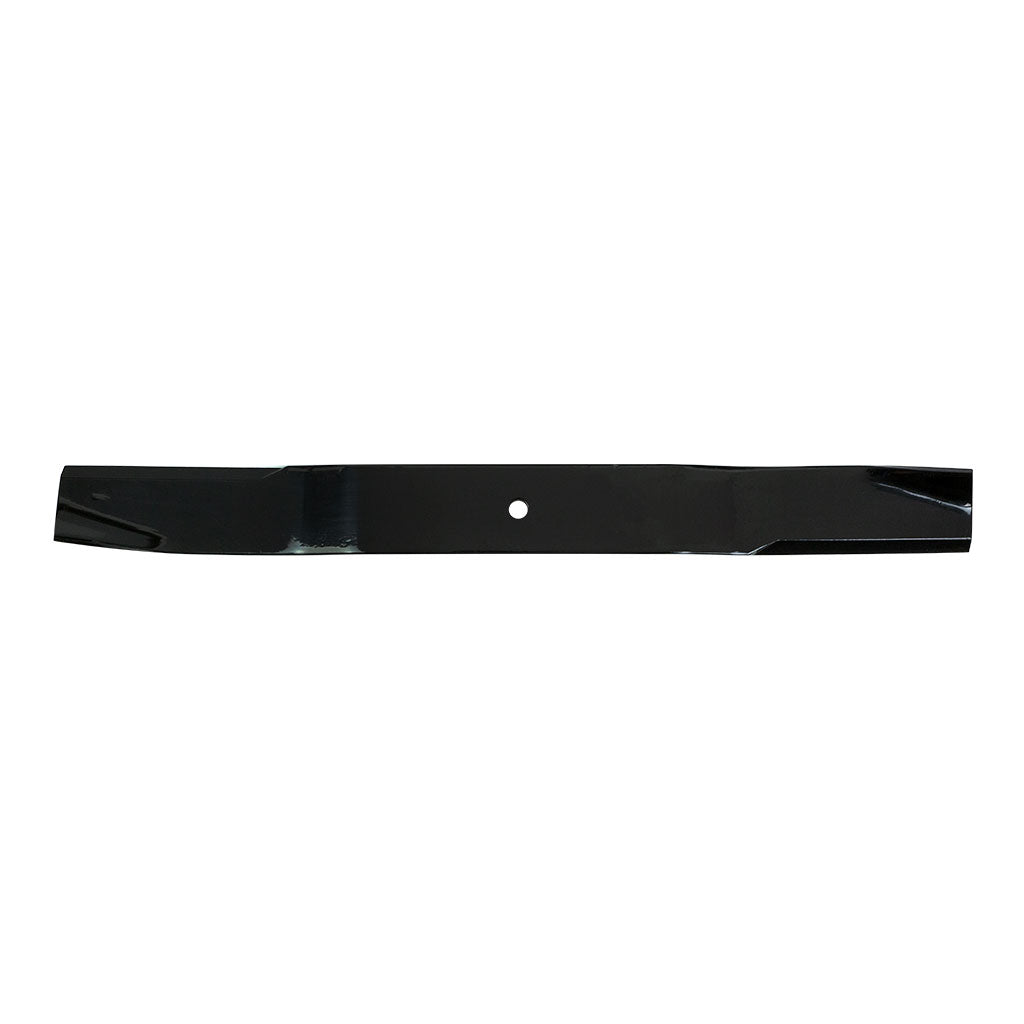

A standard bar blade, stepped and fluted, right hand cut.1/2" Step (Offset).1 3/8" Flute (Lift).

1

All blade bars are sold as singles, order the quantity required to make up a set.

72" cut side discharge decks use a different blade. When fitted with side discharge decks many of these applications including models 3280-D and 3320 use our part number R110-0621-03.

TORO - Non Genuine,

Bar Blade, Blade - Bar,
