Keeping your lawn and garden looking great can be tough. Liquid fertilizers,herbicides, and pesticides are convenient and effective for large lawn and gardenapplications. The Agri-Fab sprayers quickly apply herbicides, insecticides andother liquid chemicals on turf, trees and shrubs and feature a spray boom and ahand wand for targeted spraying around trees and bushes.OPERATION:Pump pressure switch: The pump pressure switch turns off the pump when it reachesits maximum pressure setting. Very low flow demand may cause the switch to rapidlycycle the pump on and off. Avoid prolonged periods of rapid, continuous cycling.On-off valve: The ON-OFF valve shuts off the flow to the boom nozzles.Adjustable spray gun nozzle: Twisting the nozzle will adjust the spray pattern froma cone shaped mist to a solid stream.BEFORE STARTING:1. Attach the sprayer to the tractor hitch.2. Connect the red wire of the pump cable to the positive terminal ("+") and thebrown wire to the negative terminal ("-"). CAUTION: Connect to a 12 V battery only.3. Check for leaks using plain water. Fix leaking fittings with thread tape.USING THE SPRAYER: CAUTION: Wear eye and hand protection and protective clothingwhen handling and working with lawn chemicals.1. Determine the application rate (litres per 100 sq. metre / gallons per 1,000 sq.feet) based on the chemical manufacturers recommendations.2. Estimate the size of the area to be sprayed and the amount of solution that willbe needed. This can help avoid unneeded solution left in the tank.3. Refer to the application chart in the owner's manual enclosed with your sprayerto help determine the speed required to achieve the manufacturers recommendedapplication rate.4. Use plain water to set the correct boom spraying pressure. Turn the boom valveto the "ON" position. If misting occurs, gradually start closing the valve untilmisting stops.5. Add the chemical solution to the tank, following the manufacturersrecommendations.6. Set the boom arms for spraying. Slide the boom bars out to the ends of the slotsso that the nozzles are about 40" (1 m) apart. Adjust the height of the nozzles toabout 14" (35 cm) above the ground.7. Begin spraying, making each pass so that the spray pattern slightly overlaps thespray pattern from the previous pass.8. Stay clear of flowers, shrubs and evergreen trees when spraying to preventcontact of the solution with these sensitive plants.USING THE SPRAY GUN9. Shut off the boom by turning the boom valve to "OFF".

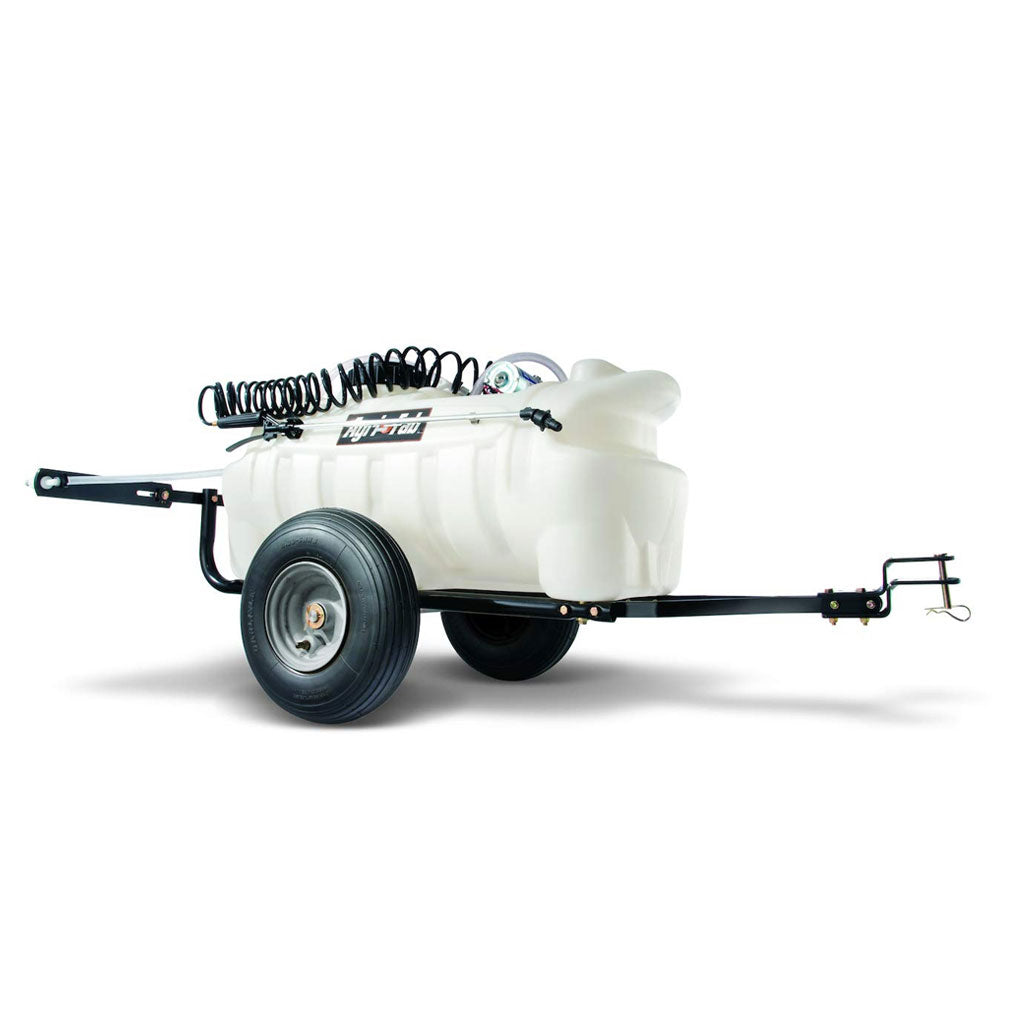

Agri-Fab 45-0293
40.3" x 18.8" x 23.1" (L x W x H)
1023.62 mm x 477.52 mm x 586.74 mm (L x W x H)
20"
508 mm
55"
1397 mm
54 lbs. (24.49 kg)
26"
660.4 mm
Pneumatic
Ribbed
Ideal for use with many brands of lawn tractor and ZTR ride-on lawn mowersincluding but not limited to selected Cox, Craftsman Garden series, Lawn Series,Professional Series and Yard Series, Dixon D series, Greenfield, Husqvarna CTH,GTH, LR, LT, LTH, YTH, TC and TS series, John Deere CR, D100, L, LT, LX and Xseries, Jonsered GT, LGT and YT series, McCulloch, MTD Yard Machines and Yard-Manseries, Murray, Poulan Pro PP series and Rover etc. lawn tractor type ride-on lawnmower models.
- The pump has a preset pressure of up to 60 PSI (413.68 kpa) with a flow rate of 2gallons (7.57 litres) per minute.- Includes boom arms and hand wand.- No clog spray nozzle.- Quickly and easily attaches to lawn tractors and ZTR's.- Hand wand sprays up to 30 feet (9.14 metres) for hard to reach trees and bushes.
1
SAFETY!1. Read the owners manual that comes with your sprayer and also the vehicle ownersmanual before using this sprayer.2. Never allow children to operate this sprayer.3. Do not allow anyone to ride on or sit on this sprayer.4. Keep the area clear of all persons, especially small children.5. Read the chemical label before handling or mixing chemicals.6. Wear eye and hand protection and protective clothing when handling and applyinglawn chemicals.7. Do not spray on windy days.8. Be aware of your tractor's capabilities. Attaching this sprayer may affect yourtractor's braking and stability.9. STAY OFF STEEP SLOPES. Refer to the vehicle owner's manual concerning safeoperation on slopes.10. Operate at reduced speed on rough terrain, along ditches and on hillsides toprevent loss of control.
