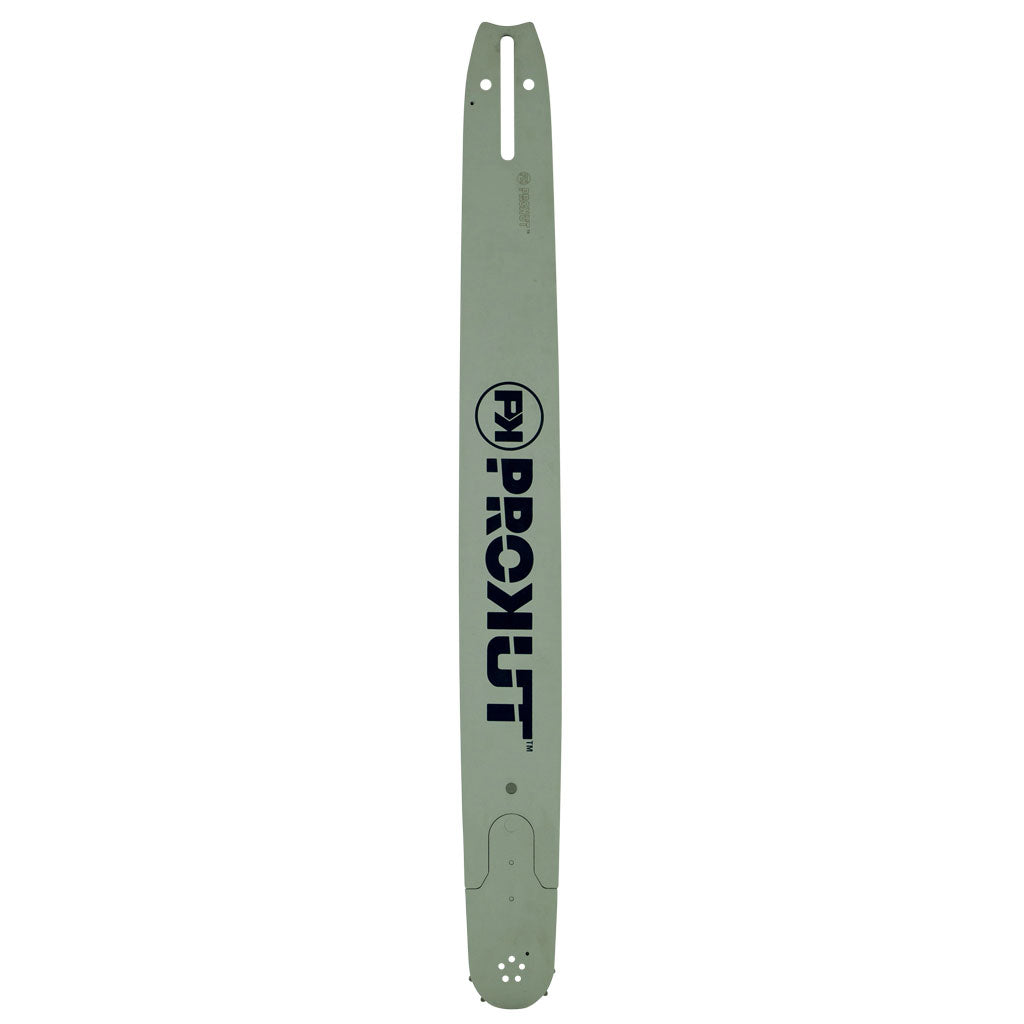

PROKUT™ 42" x 3/8" x .063" x 135 DL, CB Mount, Solid Professional ReplaceableSprocket Nose Guide Bar
OREGON® 423RNDD009
OREGON® 423RNDD009• Nose fastens with a single rivet, and is securely held by wide and strongoverlapping ears• The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody• Super tough chrome-moly steel provides superior bar-body strength and toughrails with excellent resistance to wear and chipping• All PROKUT™ guide bars are reversible for longer life
• Solid professional replaceable sprocket nose guide bar• Nose fastens with a single rivet, and is securely held by wide and strongoverlapping ears• The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody• Super tough chrome-moly steel provides superior bar-body strength and toughrails with excellent resistance to wear and chipping• All PROKUT™ guide bars are reversible for longer life
42"
42"
107 cm
3/8"
Solid Professional Replaceable Sprocket Nose Guide Bar
43S / Semi-Chisel or 43F / Full-Chisel
CB
.063"
135
11 Tooth sprocket nose
50 cc to 100 cc (3.0 to 6.0 cu. in.)371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP,390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 480, 562 XP, 562 XPG,570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100,2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 models.
Jonsered 670, 670 WEST COAST, 2083, 2083II, 2094 and 2095 models. Note: Pleasecheck your saw carefully prior to ordering, some of the above saw models were alsoreleased fitted with a .404" pitch chain.
Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL. Note: Pleasecheck your saw carefully prior to ordering, some of these saw models were alsoreleased fitted with a .404" pitch chain.
Poulan / Poulan Pro 415, 425, 445, 475, 505. Note: Please check your saw carefullyprior to ordering, some of these saw models were also released fitted with a .404"pitch chain.
Shindaiwa 680, 695, 757, 757C and 757W models.
Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 models.
1
Use with our semi-chisel chain loop part number GAF43S135DL or our full-chiselchain loop part number GAF43F135DL. Replaces our part number OMK423RNDD009
nose guide bar,
1
Use with our semi-chisel chain loop part number GAF43S135DL or our full-chiselchain loop part number GAF43F135DL. Replaces our part number OMK423RNDD009
PROKUT™, GA Forestry Accessories™
Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocketnose guide bar,
