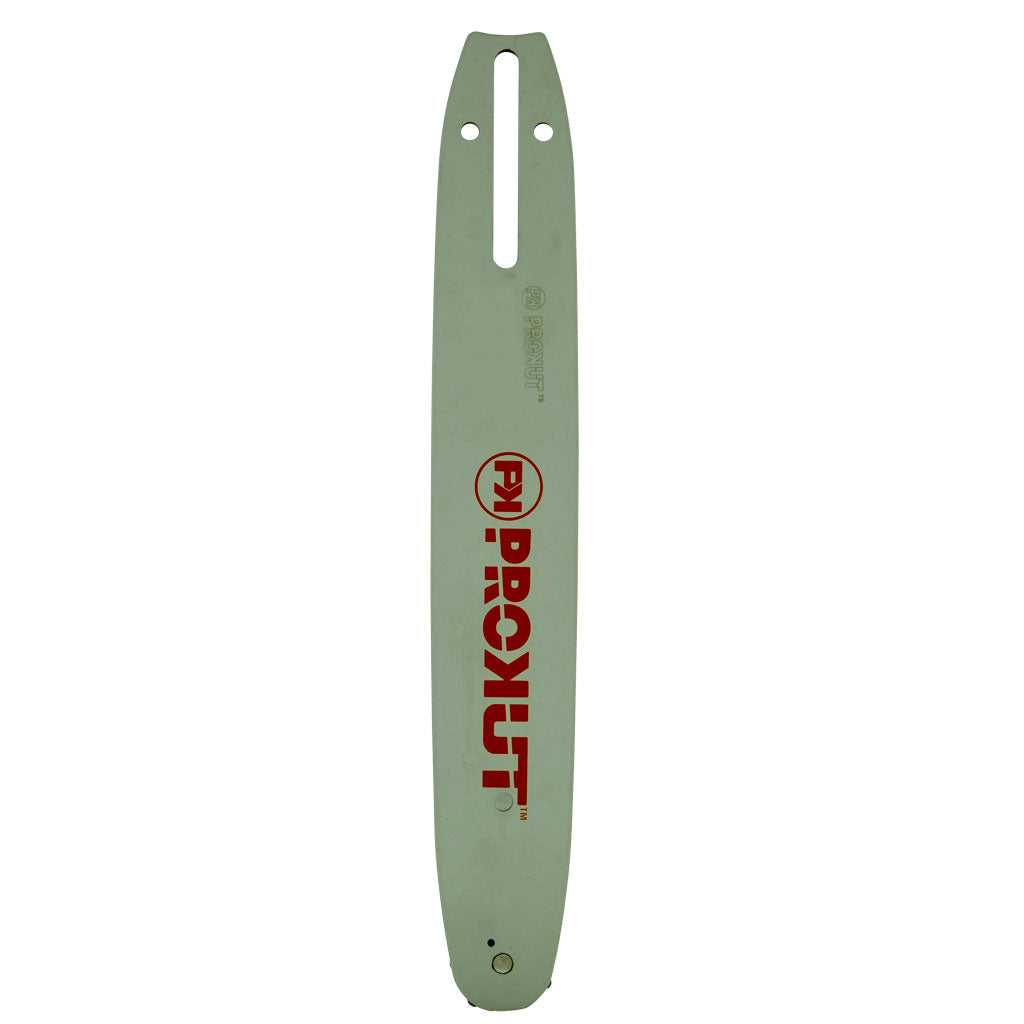

PROKUT 14" x 3/8" Low Pro x .050" x 50 DL, AD Mount, Consumer Laminated SingleRivet Sprocket Nose Guide Bar
OREGON 140SDEA074
OREGON 140SDEA074• Consumer Laminated single rivet sprocket nose guide bar• Small radius nose helps reduce kickback• Excellent rail strength for long life• Light-weight slim contour, for excellent manoeuvrability• Narrow cut (kerf) cutting systems require less power from the saw than standardcutting systems• All PROKUT guide bars are reversible for longer life
• Consumer Laminated single rivet sprocket nose guide bar• Small radius nose helps reduce kickback• Excellent rail strength for long life• Light-weight slim contour, for excellent manoeuvrability• Narrow cut (kerf) cutting systems require less power from the saw than standardcutting systems• All PROKUT guide bars are reversible for longer life
14"
14"
35 cm
3/8" Low Profile
Consumer Laminated single rivet sprocket nose guide bar
20S / Semi-Chisel
AD
.050"
50
7 Tooth sprocket nose
38 cc to 62 cc (2.3 to 3.8 cu. in.)
Alpina 361, 391 models..
171, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, MS191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 200, MS 200 T, MS 201 C,MS 201 T, MS 210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS220 Q, MSE 140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 180, MSE 180 C, MSE 180 C-BQ,MSE 200 models. Note: Please check your saw carefully prior to ordering, some ofthe above saw models were also released fitted with a .325” pitch chain.
Oleo-Mac 240, 241, 244, 344, 931, 935, 1700, Blitz, E1900, OLE 140F, OLE 300 models.
STIHL 009, 009 L, 010, 011, 012, 015, 017, 018, 018 C, 019, 019 T, 020, 020 Super,020 T, 021, 023, 023 C, 023 L, E 10, E 14, E 140, E 160, E 180, E 180 C, MS 170, MS171, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, MS191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 200, MS 200 T, MS 201 C,MS 201 T, MS 210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS220 Q, MSE 140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 180, MSE 180 C, MSE 180 C-BQ,MSE 200 models. Note: Please check your saw carefully prior to ordering, some ofthe above saw models were also released fitted with a .325” pitch chain.
STIHL 021, 023 C, 025, 025 C, MS 230, MS 230 C, MS 230 C-BE, MS 231, MS 231 C-BE,MS 250, MS 250 C, MS 250 C-BE, MS 251, MS 251 C-BE, MS 251 C-BEQ, MS 251 C modelsas a NARROW CUT option.
1
Use with our semi-chisel chain loop part number GAF20S050DL. For asemi-professional laminated multi-rivet sprocket nose version of this guide bar useour part number GAFAD1420EL. For a bar and chain combo to suit the above models useour part number GAF105702. Replaces our part number OMK140SDEA074.
1
Use with our semi-chisel chain loop part number GAF20S050DL. For asemi-professional laminated multi-rivet sprocket nose version of this guide bar useour part number GAFAD1420EL. For a bar and chain combo to suit the above models useour part number GAF105702. Replaces our part number OMK140SDEA074.
