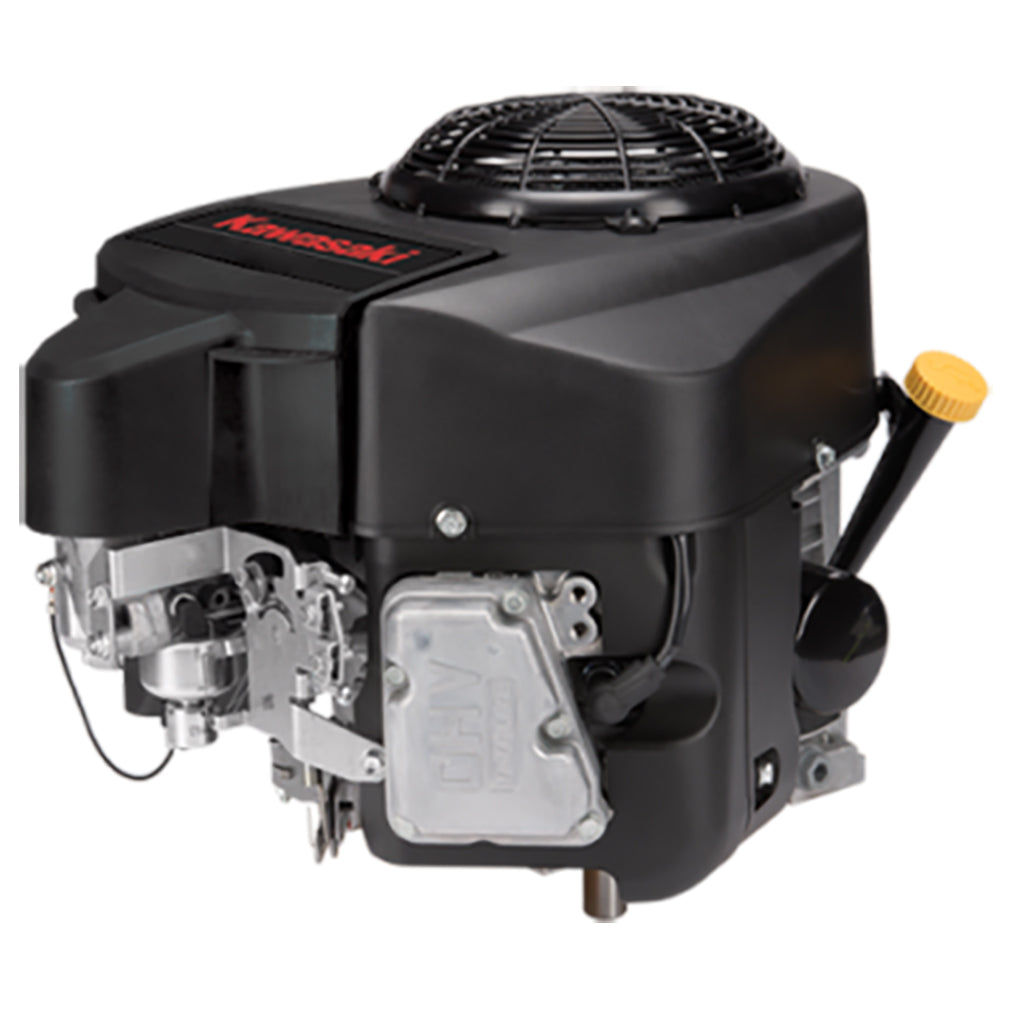

KAWASAKI FR730V-FS16-S 24HP 17.9KW 1 1/8 (28 X 108MM)

Kawasaki 24.0 hp (17.9 kW) 726 cc FR730V-DS16-S model vertical shaft engine with a1 1/8” x 108 mm crankshaft

Overhead v-valve 90-degree V-twin.Pressurised lubrication system.Electronic spark ignition.Automatic compression release.Single-stage air filter.Internally vented carburettor with fuel shut-off solenoid.Cast-iron cylinder liners.Rotating metal grass screen.Electric Start.

Overhead v-valve 90-degree V-twin.

Kawasaki FR730V-DS16-S

726 cc

24.0 hp (17.9 kW) at 3600 rpm.

V-Twin.

Cast-iron cylinder liners.

3.1 x 3.0 in. (78 x 76mm).

726 cc (44.3 cu. in.).

8.2:1

Air cooled flywheel fan.

24.0 hp (17.9 kW) at 3600 rpm.

39.7 ft lb (53.9 Nm) at 2200 rpm.

Internally vented carburettor with fuel shut-off solenoid.

Automatic compression release.

Electronic.

1/8” x 108 mm crankshaft.

Single-stage air filter.

12-Volt.

12-Volt.

No Muffler Included.

Unleaded fuel - maximum of 10% ethanol in fuel.

No Fuel Tank Included.

Spin-on engine oil filter.

2.1 U.S. qt (2.0 litres) Oil capacity w/filter.

88.2 lbs.

40.0 kg.

KAWASAKI COMMERCIAL ENGINE WARRANTY POLICY FOR AUSTRALIAGA Power Equipment Spares warrants to the initial purchaser of each new Kawasakifour-cycle engine that it will repair or replace, free of charge, any engine partsfound to be defective, under normal use and proper maintenance, for a period ofthirty-six (36) months, subject to the following conditions, exclusions,obligations andlimitations.If you have questions about warranty coverage, please contact the local Kawasakidealer.1. COVERAGE.a. Any factory-installed engine part found to be defective by Kawasaki within thethirty-six (36) month warranty term shall be repaired or replaced without chargeforparts or labour at any authorized Kawasaki engine dealer located in Australia.b. A Kawasaki part or accessory sold and installed by an authorised Kawasaki EngineDealer, which is found defective in material and/or workmanship, within thethree (3) month warranty term, shall be repaired or replaced (at the option ofKawasaki) without charge for the part or accessory, at any authorised KawasakiEngine Dealer located in Australia.2. OWNER’S OBLIGATIONS.The following obligations must be fulfilled by owner to maintain the validity ofthe Kawasaki warranty for Australia:c. Owner must deliver the four-cycle engine to an authorized Kawasaki engine dealerfor inspection, maintenance services and adjustments according to the PeriodicMaintenance Chart for Australia. The inspection, maintenance services andadjustments are to be performed at owner’s expense.d. Owner must present proof of initial retail purchase date to an authorizedKawasaki engine dealer at the time warranty repairs are performed on the four-cycleengine.3. LIMITATIONS.This warranty shall not apply to or include any of the following:e. Repair or replacement required as a result of accident, misuse or neglect, lackof reasonable and proper maintenance, repairs improperly performed orreplacements improperly installed, use of replacement parts or accessories notconforming to Kawasaki specifications which adversely affect performance and/ordurability, alterations or modifications not recommended or approved in writing byKawasaki, and/or wear and deterioration occasioned by the use of the four-cycleengine, the use of stale or incorrect fuel.f. Routine maintenance services, adjustments, cleaning and/or expendables such asspark plugs, lubricants, oil filters, air filters, and fuel filters.4. LIMITED LIABILITY.g. The liability of Kawasaki under the thirty-six (36) month warranty is limitedsolely to the remedying of defects in factory-installed engine parts by anauthorizedKawasaki engine dealer at its place of business during customary business hours.This warranty does not cover inconvenience or loss of use of the four-cycle engineor transportation of the four-cycle engine to and from the Kawasaki dealer.KAWASAKI SHALL NOT BE LIABLE FOR ANY OTHER EXPENSE, LOSS OR DAMAGE,WHETHER DIRECT, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY ARISING IN CONNECTION WITHTHE SALE OR USE OF OR INABILITY TO USE THEKAWASAKI FOUR CYCLE ENGINE FOR ANY PURPOSE.h. NO EXPRESS WARRANTY IS GIVEN BY KAWASAKI WITH RESPECT TO THE KAWASAKI FOUR-CYCLEENGINE EXCEPT AS SPECIFICALLY SET FORTH HEREIN.ANY WARRANTY IMPLIED BY LAW, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESSFOR A PARTICULAR PURPOSE, IS EXPRESSLY LIMITEDTO THE THIRTY-SIX (36) MONTH WARRANTY TERM SET FORTH HEREIN. THE FOREGOINGSTATEMENTS OF WARRANTY ARE EXCLUSIVE AND IN LIEU OFALL OTHER REMEDIES.i. No distributor, dealer or other four-cycle engine reseller is authorized tomodify this Kawasaki Limited Four-Cycle Warranty.AUSTRALIAN CONSUMER LAW (REG.90)Our goods come with guarantees that cannot be excluded under the AustralianConsumer Law. You are entitled to a replacement or refund for a major failure andforcompensation for any other reasonably foreseeable loss of damage. You are alsoentitled to have the goods repaired or replaced if the goods fail to be ofacceptablequality and the failure does not amount to a major failure.The text above applies notwithstanding anything else expressed or implied to thecontrary in this Warranty document.

1

Please Note: No Fuel Tank or Muffler Included. PLEASE NOTE: Horsepower rating astested to SAE J1995 Standards. *
