HUSTLER / BIGDOG SPINDLE ASSEMBLY SUITS RAPTOR SD / X / XD / SPORT

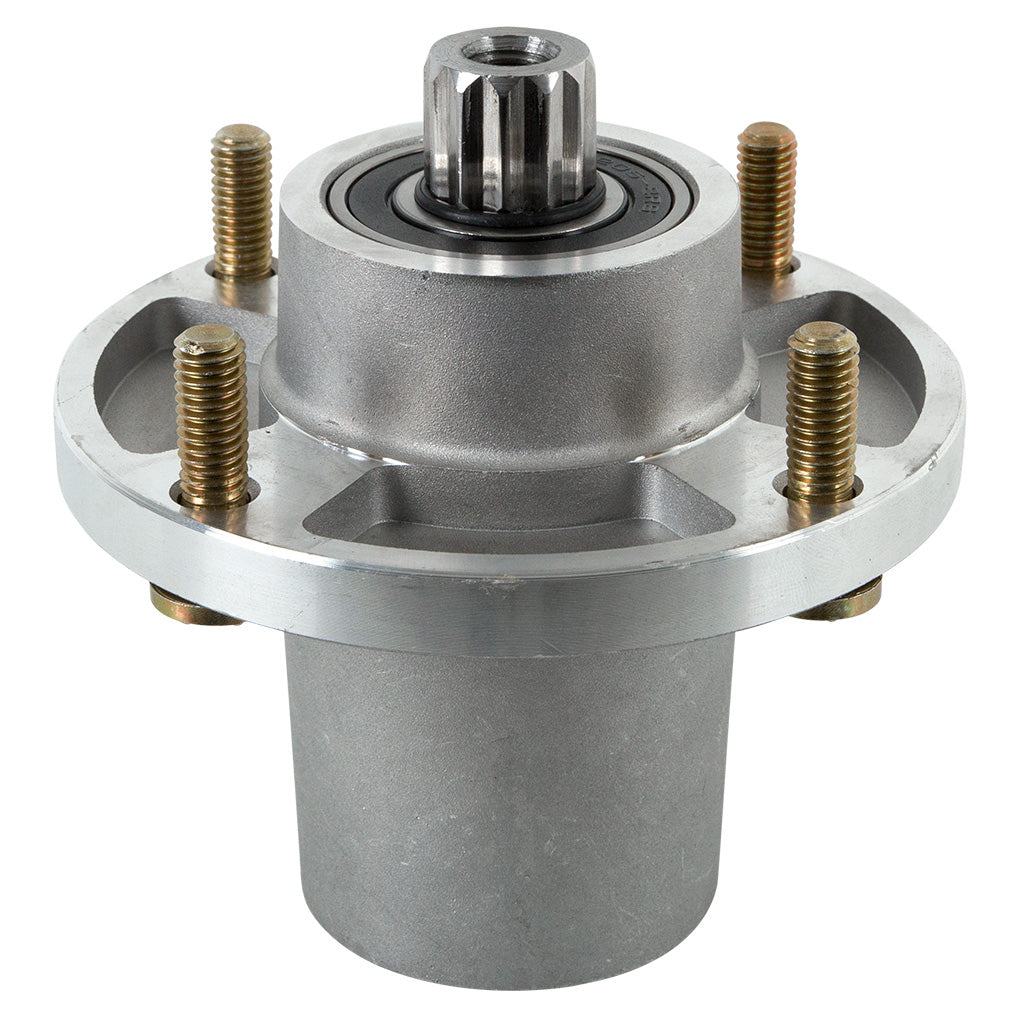

Non-Genuine BigDog, HUSTLER 36", 42", 46", 48", 54", 60" Cut Late Model SpindleAssembly - Includes Preinstalled Mounting Bolts

BigDog 601804, 607418,HUSTLER 601804, 607418,

Round

91.5 cm, 1067 cm, 116.8 cm, 122 cm, 137.2 cm, 152.4 cm Cut.

36", 42", 46", 48", 54", 60" Cut.

915 mm, 1067 mm, 1168 mm, 1220 mm, 1372 mm, 1524 mm Cut.

36" (914 mm) cut BigDog A Series (model 931337EX) zero turn radius (ZTR) ride-onmodels.

2 required for 36" cut.

42" (1067 mm) cut BigDog A Series (model 931345EX), Alpha MP (model 936393EX), CSeries (models *931428EX and *931436EX used on mowers with serial numbers prior to11021630 and higher than 11021740 and model 933572EX) zero turn radius (ZTR)ride-on models.

2 required for 42" cut.

Please Note: Models with an *asterisk before them used more than one type ofspindle assembly during their production life. Please check your unit carefullyprior to ordering. In most cases the other spindle assembly used is our part numberJA7944 (replaces OEM: 783506 - used on mowers with serial numbers between 11021630and 11021740).

46" (1170 mm) cut BigDog C Series (models 931451EX and 933580EX) zero turn radius(ZTR) ride-on models.

2 required for 46" cut.

48" (1220 mm) cut BigDog Alpha MP (models 932947EX, 936526EX and 937581EX), RSeries (model 931493AU) and Stout (model 933549EX) zero turn radius (ZTR) ride-onmodels.

3 required for 48" cut.

54" (1372 mm) cut BigDog Alpha MP (models 932939EX, 936518EX and 937573EX), CSeries (model 933598EX), R Series (model 931519EX) and Stout (model 933556EX) zeroturn radius (ZTR) ride-on models.

3 required for 54" cut.

60" (1524 mm) cut BigDog R Series (model 931535AU) and Stout (model 933168EX) zeroturn radius (ZTR) ride-on models.

3 required for 60" cut.

36" (914 mm) cut HUSTLER FasTrak SuperDuty (model 932491EX) and Raptor SD (models935262EX and 938365EX) zero turn radius (ZTR) ride-on models.

2 required for 36" cut.

42" (1067 mm) cut HUSTLER FasTrak SuperDuty (model 932517EX), Raptor SD (models935270EX, 936559EX and 938407EX), Raptor X (model 940494EX), Raptor XD (model939819EX), Sport (models *930198EX, *930206EX and *932293EX used on mowers withserial numbers prior to 11021630 and higher than 11021740) zero turn radius (ZTR)ride-on models.

2 required for 42" cut.

Please Note: Models with an *asterisk before them used more than one type ofspindle assembly during their production life. Please check your unit carefullyprior to ordering. In most cases the other spindle assembly used is our part numberJA7944 (replaces OEM: 783506 - used on mowers with serial numbers between 11021630and 11021740).

48" (1220 mm) cut HUSTLER Raptor Flipup (model 935288EX), Raptor SD (models932566EX, 936542EX and 938399EX), Raptor XD (model 940510EX) and Sport (model930222EX) zero turn radius (ZTR) ride-on models.

3 required for 48" cut.

54" (1370 mm) cut HUSTLER Raptor SD (models 932558EX, 936534EX and 938381EX),Raptor X (model 940502EX), Raptor XD (model 939751EX), Sport (model 933473EX) zeroturn radius (ZTR) ride-on models.

3 required for 54" cut.

Late model spindle assembly - includes preinstalled mounting bolts.

1

All spindle assemblies are sold as singles, order the quantity required to make upa set.

BigDog Non-Genuine, HUSTLER Non-Genuine,

Assembly - Spindle, Quill Assembly, Spindle Assembly,
