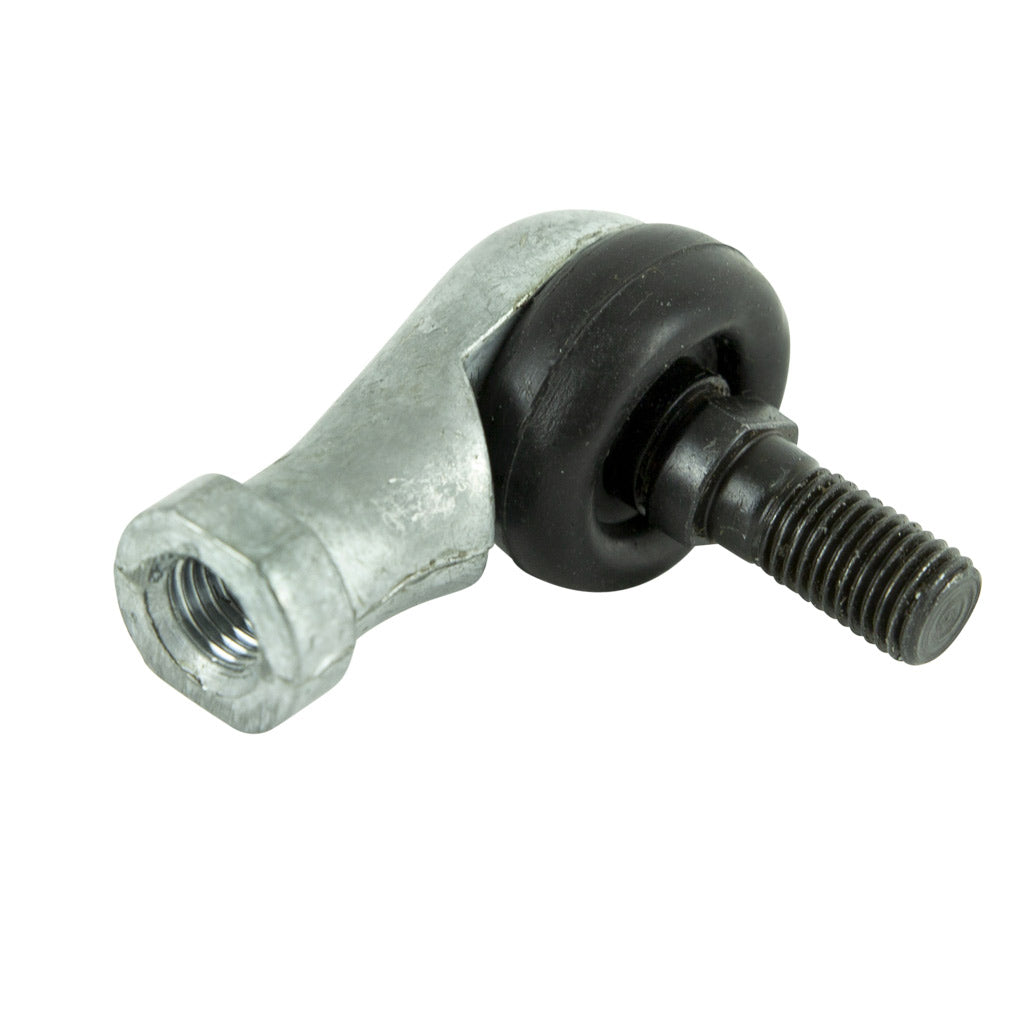

GREENFIELD TIE ROD END R/H

Non-Genuine Greenfield Ball Joint / Tie Rod End, Male And Female Right HandThreads, Both M10 x 1.25

Greenfield GT 06044, GT06044, GT6044, GT 6044,

2.086" (Overall Height)

53 mm (Overall Height)

2.303" (Overall length)

58.5 mm (Overall length)

M10 x 1.25 (Both ends) x 0.787" (20 mm) Long

30” (762 mm) cut Greenfield Evolution III (models 10.5/30 and 12.5/30), EvolutionIII MK2 (model 11.5/30), Evolution III MK2A (models 8.5/30 and 11.5/30) ride-onlawn mower models as the tie rod end that connects the steering link rod to thechain sprocket wheel.

32” (813 mm) cut Greenfield Evolution III (model 12.5/32, 13/32 Standard and13/32 Deluxe), Evolution III MK2 (model 13/32 Standard and 13/32 Deluxe), EvolutionIII MK2A (models 13/32 Standard and 13/32 Deluxe), Evolution e2000 (models 14/32and 15/32) ride-on lawn mower models as the tie rod end that connects the steeringrod to the chain sprocket wheel.

32” (813 mm) cut Greenfield Evolution FASTCUT32 (11.5 hp to 18 hp) ride-on lawnmower models as the tie rod end that connects the steering link rod to the steeringcrank.

32” (813 mm) cut Greenfield FASTCUT 17.5/32 Standard (model GT22670) and 17.5/32Steel Deck (model GT22690), 25/32 Standard (model GT22875) and 25/32 Steel Deck(model GT22875SD) ride-on lawn mower models as the inner and outer tie rod ends forthe steering drag links and is also used as the tie rod end that connects thesteering link rod to the steering crank.

34” (864 mm) cut Greenfield Evolution FASTCUT34 (13.5 hp to 26 hp), FASTCUT17.5/34 Deluxe (model GT228995), 25/34 V-Twin Deluxe (model GT22900) ride-on lawnmower models as the inner and outer tie rod ends for the steering drag links and isalso used as the tie rod end that connects the steering link rod to the steeringcrank.

34” (864 mm) cut Greenfield Evolution e2000 MK2A (model 16/34 and 17/34) ride-onlawn mower models as the tie rod end that connects the steering rod to the chainsprocket wheel.

38” (965 mm) cut Greenfield Evolution III (model 12.5/38) ride-on lawn mowermodels as the tie rod end that connects the steering link rod to the chain sprocketwheel.

42” cut Greenfield FASTCUT 25/42 V-Twin Deluxe (model GT22885) ride-on lawn mowermodels as the inner and outer tie rod ends for the steering drag links and is alsoused as the tie rod that connects the steering link rod to the steering crank.

• Male End: M10 x 1.25 right hand thread• Female End: M10 x 1.25 right hand thread• Thread Length: 0.787" (20 mm)• Overall Length: 2.303" (58.5 mm)• Overall Height: 2.086" (53 mm)

1

Please check your model carefully prior to ordering as early model Greenfield30”, 32” and 38” cut ride-on lawn mowers used a different tie rod end for thesteering drag link. For many late model Greenfield ride-on lawn mowers use this tierod end (CHD8240) with our tie rod end part number CHD8242 (the left-hand threadedtie rod that connects the steering link rod to the chain sprocket wheel).
