GRAVELY DRIVE BELT SUITS ZT XL 42 & 48

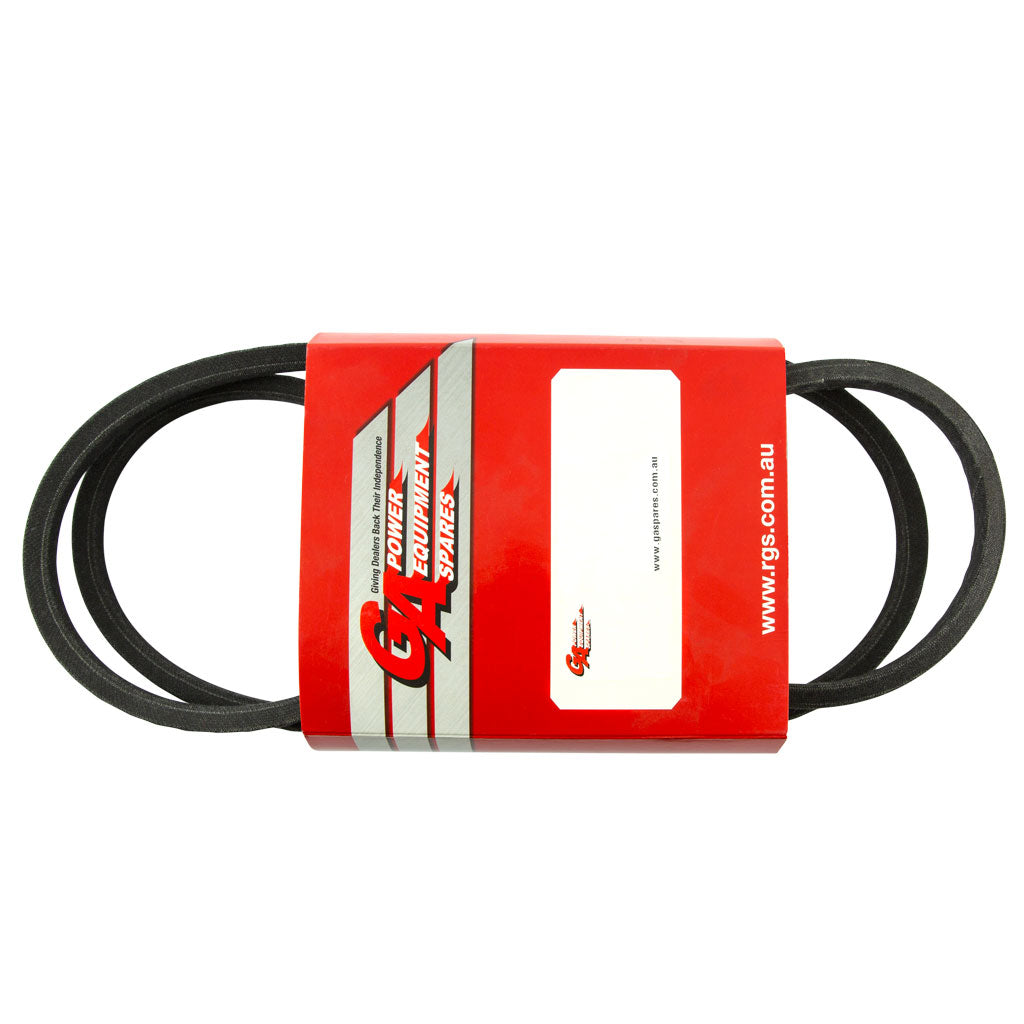

Ariens and GRAVELY Transmission Drive Belt

Ariens: 07242200, 07243200GRAVELY: 07242200, 07243200

42", 48" & 54

1070 mm, 1220 mm & 1372

107 cm, 122 cm & 137

60.5

1536.7

62.5

1587.5

1/2

12.7

42" (1070 mm) cut Ariens Zoom XL 42 (915145 models with serial # 000101 and onwards and 915163 models with serial # 000101 - 009999, 010000 - 019999, 020000 - 020999, 021000 - 034999, 035000 - 044999, 045000 and onwards) zero turn ride-on lawnmower models as the transmission drive belt.

Transmission Drive Belt (1/2" Wide x 60.5" I.D)

48" (1220 mm) cut Ariens Zoom XL 48 (915147 models with serial # 000101 and onwards and 915165 models with serial # 000101 - 009999, 010000 - 019999, 020000 - 020999, 021000 - 034999, 035000 - 044999, 045000 and onwards) zero turn ride-on lawnmower models as the transmission drive belt.

54" (1372 mm) cut Ariens Zoom XL 54 (915149 models with serial # 000101 and onwards) zero turn ride-on lawnmower models as the transmission drive belt.

42" (1070 mm) cut GRAVELY ZT XL 42 (915160 models with serial # 000101 - 009999, 010000 - 019999, 020000 - 020999, 030000 - 034999, 035000 and onwards and 915184 models with serial # 030000 - 044999, 045000 and onwards) zero turn ride-on lawnmower models as the transmission drive belt.

48" (1220 mm) cut GRAVELY ZT XL 48 (915162 models with serial # 000101 -009999, 010000 - 019999, 020000 - 020999, 021000 - 029999, 021000 - 029999, 030000 - 034999, 035000 and onwards and 915186 models with serial # 030000 - 044999, 045000 and onwards), ZT XL 48 CARB (915198 models with serial # 000101 and onwards) zero turn ride-on lawnmower models as the transmission drive belt.

54" (1372 mm) cut GRAVELY ZT XL 54 (915164 models with serial # 000101 - 009999, 010000 - 019999, 020000 - 020999, 021000 - 029999, 030000 - 034999, 035000 and onwards and 915188 models with serial # 030000 - 044999, 045000 and onwards) zero turn ride-on lawnmower models as the transmission drive belt.

1

For 42" cut Ariens Zoom XL 42 (models 915145 and 915163) use with our BEL7986 (cutter deck belt).For 48" cut Ariens Zoom XL 48 (models 915147 and 915165) use with our BEL7990 (cutter deck belt).For 42" cut GRAVELY ZT XL 42 (models 915160 and 915184) use with our BEL7986 (cutter deck belt).For 48" cut GRAVELY ZT XL 48 and ZT XL 48 CARB (models 915162, 915186 and 915198) use with our BEL7990 (cutter deck belt).

Ariens - Non Genuine, GRAVELY - Non Genuine,

Belt, V Belt, Transmission Belt,
