BROADCAST SPREADER 85LB

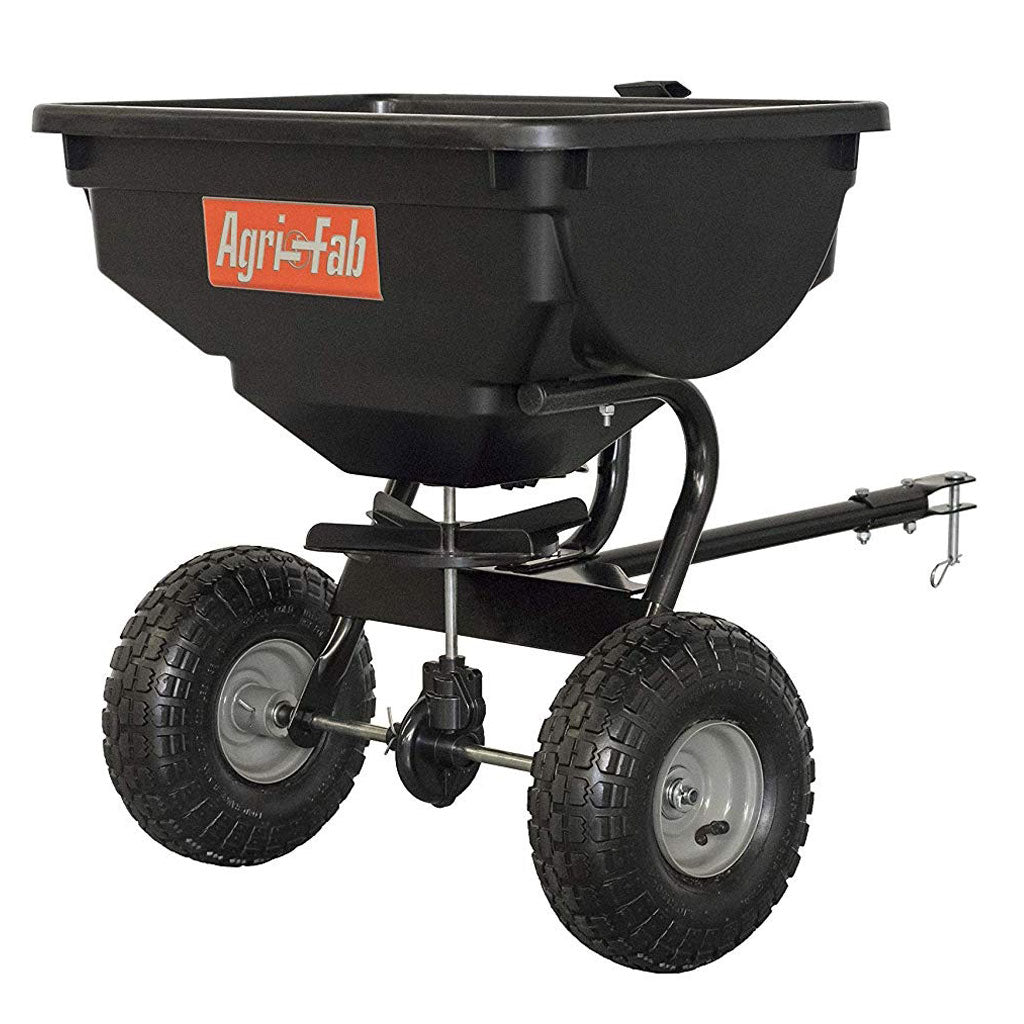

Agri-Fab 38.55 KG (85 lb) Tow-Behind Broadcast Spreader

The Agri-Fab tow-behind broadcast spreaders will make your neighbours green withenvy. Spread seed, fertiliser and weed control evenly and in less time. The easyand convenient way to cover larger areas.

Agri-Fab 45-0530

(L x W x H): L 22.3" x W 16.3" x H 14.5"

(L x W x H): L 566.42 mm x W 414.02 mm x H 368.3 mm

25.0"

635 mm

33.0"

838.2 mm

8.164 kgs (18 lbs)

22.0"

558.8 mm

10" (254 mm) Pneumatic wheels.

Block

Perfect for fertilizing or weed control.Easy set controls allow for precise amount of product to be distributed onto lawns.Rust-proof poly hopper and spreader plate increases product life.Corrosion resistant hardware.Maneuverable - Pneumatic tyres let you go anywhere to get the job completely done.Universal mounting - Makes this broadcast spreader suitable for use with mostride-on lawn mowers.Made in the USA with global materials.38.55 kgs (85 lb.) capacity covers approximately 1,011 square metres (1/4 acre or14,000 sq. ft.) depending on material used and speed of application.

1

Please Note:OperatIng Instructions:-Do not use powdered lawn chemicals. They do not give a satisfactory or consistentbroadcast pattern.1. Estimate the size of the area to be covered and calculate the amount of materialrequired.2. Set the adjustable stop according to the flow setting recommended in theapplication chart which is printed in the operating manual. Also refer to theinstructions on the packaging for the material to be spread.3. The application chart is calculated for light to heavy coverage at a vehiclespeed of 4.5 kmh (3 mph), or 30.5 metres (100 ft.) in 23 seconds. Do not exceed 4.5kph (3 mph).4. Make sure the control lever is in the "OFF" position.5. Fill the hopper, breaking up any lumpy fertilizer.6. Start the spreader in motion and then pull the control lever forward against theadjustable stop to the "ON" position.7. Always move the control lever to the "OFF" position before turning or stopping.8. To ensure uniform coverage, make each pass so that the broadcast patternslightly overlaps the pattern from the previous pass. The approximate broadcastwidths for different materials are shown in the application chart in the operatingmanual.9. For rectangular areas, make two passes across the short ends to create turningareas. For non-rectangular areas, make two passes around the entire border.10. When broadcasting weed control fertilizers, make sure the broadcast patterndoes not hit evergreen trees, flowers or shrubs.Safety Information:-SAFETY INFORMATION1. Read the information on the chemical package for instructions and cautions onhandling and applying.2. Wear eye, hand and breathing protection when handling and when applying lawn orgarden chemicals.3. Never allow children to operate the vehicle or spreader.4. Do not use the spreader to transport people.5. Before using the spreader for the first time, ensure that you are completelyfamiliar with the functions of the towing vehicle.6. Please be aware that the towing vehicle performs differently when it is pullinga load.• Do not drive too close to ditches or other obstacles.• Do not drive on steep inclines.7. Always begin in 1st gear and never go faster than 4.82 kph (3 mph).STORING1. Empty the spreader after each use, storing left over material in its originalbag.2. Rinse the inside of the hopper and the exterior of the spreader and dry offbefore storing.3. Store in a clean, dry area.

Agri-Fab,

Broadcast Spreader, Fertilizer Spreader, Spreader - Broadcast, Spreader -Fertilizer,
