BIGDOG / HUSTLER SPINDLE ASSY

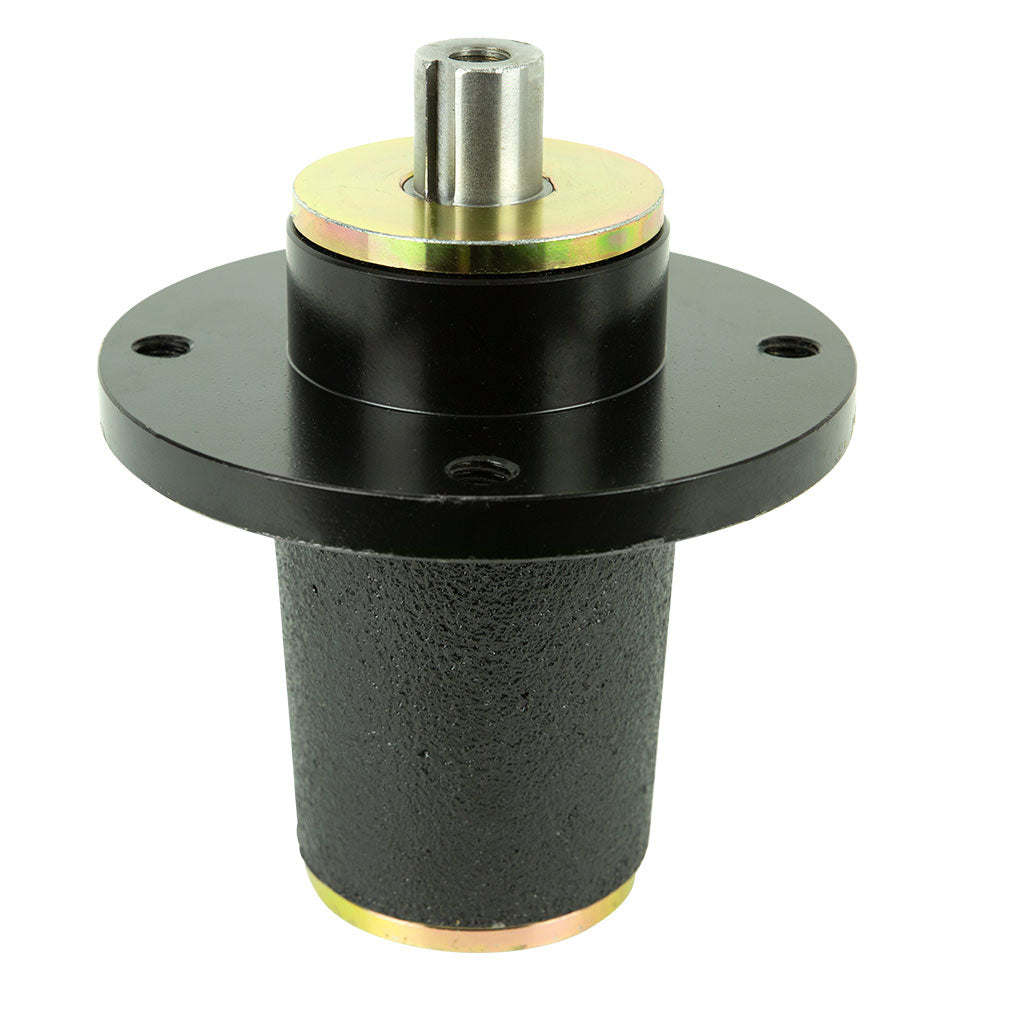

Non-Genuine BigDog, HUSTLER 36", 48", 52", 54", 60", 66", 72" & 104" Cut Cast IronSpindle Assembly

BigDog 604255, 607407,HUSTLER 604255, 607407,

Round

91.5 cm, 122 cm, 132 cm, 137.2 cm, 152.4 cm, 167.6 cm, 182.8 cm & 264.2 cm Cut.

36", 48", 52", 54", 60", 66", 72" & 104" Cut.

915 mm, 1220 mm, 1320 mm, 1372 mm, 1524 mm, 1676 mm, 1828 mm & 2642 mm Cut.

52" (1320 mm) cut BigDog Diablo (models 933366EX, 935551EX and 936344EX) zero turnradius (ZTR) ride-on models.

3 spindles required for 52" cut.

60" (1524 mm) cut BigDog Diablo (models 933242EX, 935569EX and 936351EX) and DiabloMP (models 933291EX, 935122EX and 937292EX) zero turn radius (ZTR) ride-on models.

3 spindles required for 60" cut.

72" (1828 mm) cut cut BigDog Diablo (models 933275EX and 936443EX) and Diablo MP(model 935106EX) zero turn radius (ZTR) ride-on models.

3 spindles required for 72" cut.

36" (915 mm) cut HUSTLER Super S Stander (model 940288EX) zero turn radius (ZTR)ride-on models.

2 spindles required for 36" cut.

48" (1220 mm) cut HUSTLER X-One side discharge (models 933135EX, 934133EX and934497EX) zero turn radius (ZTR) ride-on models.

3 spindles required for 48" cut.

54" (1372 mm) cut HUSTLER Super Z and Super Z HD side discharge (models 938100EXand 938878EX), X-One side discharge (models 932780EX, 934158EX, 934810EX, 936740EXand 941112EX) and Z Diesel side discharge (model 931196EX) zero turn radius (ZTR)ride-on models.odels.

3 spindles required for 54" cut.

60" (1524 mm) cut HUSTLER Super Z and Super Z HD rear discharge (models *932178EX,*935320EX, *937078EX, *938126EX and *941195EX), Super Z and Super Z HD sidedischarge (models 932160EX, 934927EX, 935254EX, 937003EX, 937060EX, 938118EX,938886EX and 941146EX), Super Z Hyperdrive rear discharge (model *941336EX), SuperZ Hyperdrive side discharge (models 9413101EX and 940551EX), X-One side discharge(models 932723EX, 934174EX, 934836EX, 936799EX and 941120EX), Z Diesel reardischarge (models *931212EX, *932681EX and *938191EX), Z Diesel side discharge(models 931204EX, 932673EX and 938183EX zero turn radius (ZTR) ride-on models.

3 spindles required for 60" cut (Please refer to product note).

Side discharge models use 3 x JAS8565. Rear discharge models use 2 x JAS8565 and 1x OEM's: 604256 or 607408 (not currently stocked).

66" (1676 mm) cut HUSTLER Super Z and Super Z HD side discharge (models 932657EX,935494EX and 937102EX) zero turn radius (ZTR) ride-on models.

3 spindles required for 66" cut.

72" (1828 mm) cut HUSTLER Super Z and Super Z HD side discharge (models 932152EX,934950EX, 935338EX, 937037EX and 937086EX), Super Z Hyperdrive side discharge(models 940577EX and 941344EX) and Z Diesel (models 931238EX, 932699EX and938225EX) zero turn radius (ZTR) ride-on models.

3 spindles required for 72" cut.

104" (2642 mm) cut HUSTLER Super 104 (models *931733EX, *938910EX, *939603EX and*940544EX) zero turn radius (ZTR) ride-on models.

5 spindles required for 104" cut (Please refer to product note).

Centre deck uses 2 x JAS8565 and 1 x OEM's: 604256 or 607408 (not currentlystocked). Left side deck uses 1 x OEM's: 604256 or 607408 (not currently stocked).Right side deck uses 1 x JAS8565.

1

*Models with an asterisk use more than one type of spindle assembly to complete aset, please check your machine carefully prior to ordering. All spindle assembliesare sold as singles, order the quantity required to make up a set.
