BIGDOG / DIXON / HUSTLER 20-1/2" COPPERHEAD MULCHER BAR 2 X 42" / 3 X 60" CUT H/DUTY

Non-Genuine Bad Boy, BigDog, Dixon, Exmark, GRAVELY, HUSTLER, TORO Selected 42" And60" Cut Copperhead Mulcher Bar Blade

Bad Boy 038-2007-00, 038-6060-00, 038-6050-00BigDog 794214, 794230Dixon 9383, 12441, 18931Exmark 1-613112, 613112GRAVELY 46999HUSTLER 794214, 794230TORO 1030301, 105-7718, 105-7718-03

5/8"

15.875 mm

20 1/2"

520.7 mm

3"

76.2 mm

Round

60" (1524 mm) cut Bad Boy Lightning series and Pup series zero turn radius (ZTR)ride-on models.

3 blades required for 60" Cut

42" (1067 mm) cut BigDog "A" series (20 hp model 931345), "C" series (17.5 hp model931428 and 18 hp model 931436) zero turn radius (ZTR) ride-on models.

2 blades required for 42" cut

60" (1524 mm) cut BigDog "R" Series (26 hp model 931535) zero turn radius (ZTR)ride-on models.

3 blades required for 60" Cut

60” (1524 mm) cut Dixon selected models including 8025, ZTR560 (year 1993),ZTR5601 (years 1994 to 1996), ZTR6601 (years 1995 to 1996) zero turn radius (ZTR)ride-on models.

3 blades required for 60" Cut

60” (1524 mm) cut Exmark selected models including Lazer Z, zero turn radius(ZTR) ride-on models.

3 blades required for 60" Cut

60” (1524 mm) cut GRAVELY selected zero turn radius (ZTR) ride-on models.

3 blades required for 60" Cut

42” (1067 mm) cut HUSTLER models as a mulcher blade option including selectedMini‑FasTrak and Mini Z, zero turn radius (ZTR) ride-on models.

2 blades required for 42" cut

60” (1524 mm) cut HUSTLER models including selected FasTrak Super Duty, HUSTLER Zand Super Z fitted with 60” cut XR‑7 decks, HUSTLER X‑One and Super Z fittedwith 60” cut VX4 decks, zero turn radius (ZTR) ride-on models.

3 blades required for 60" Cut

60” (1524 mm) cut TORO Z500 and Z528 Z Master zero turn radius (ZTR) modelsfitted with 7‑Gauge side discharge decks and Z500, Z553, Z550, Z555, Z557, Z558,Z560, Z580, Z580‑D, Z587L, Z588E, Z589, Z590‑D, Z593‑D, Z595‑D and Z597‑DZ Master zero turn radius (ZTR) models fitted with TURBO FORCE side discharge decks.

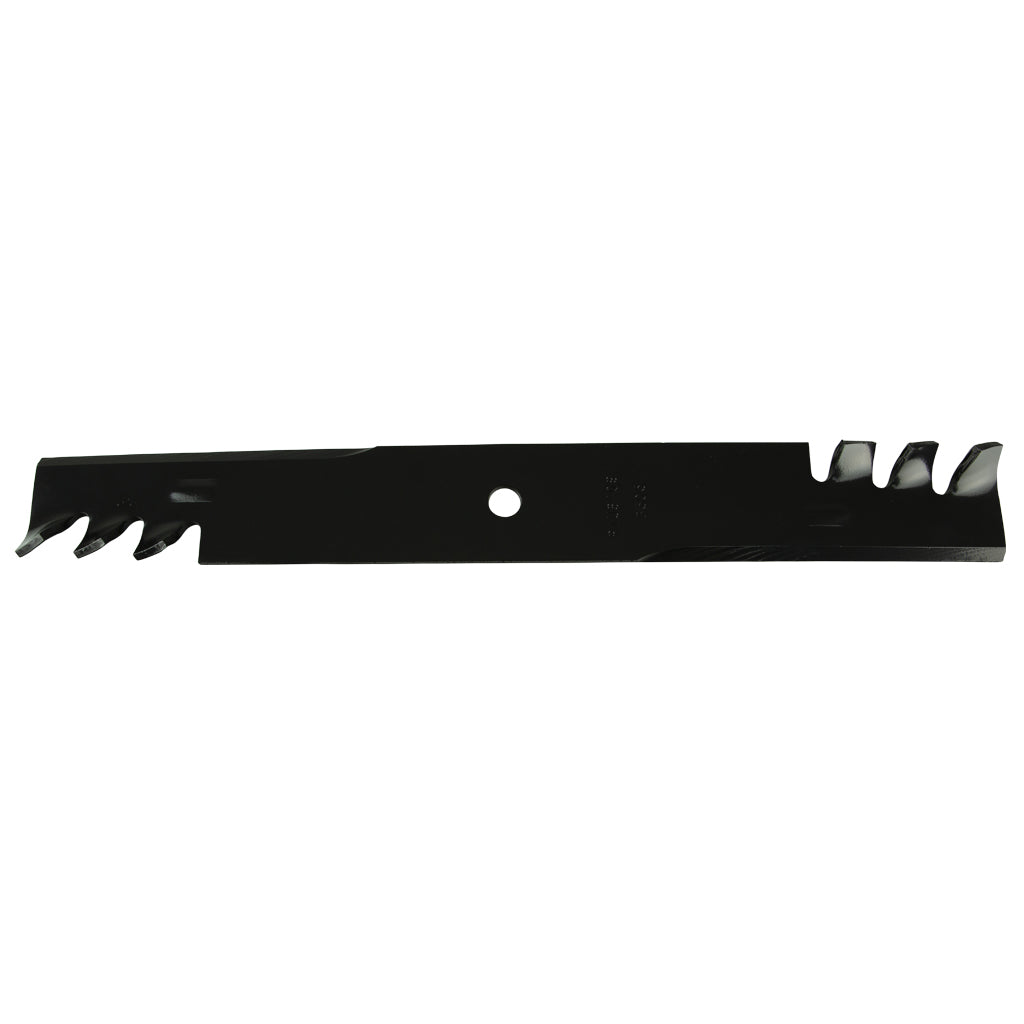

Copperhead mulcher blade, flat and fluted, right hand cut.

1

All blade bars are sold as singles, order the quantity required to make up a set.

For Gator Mulcher blade options use our part numbers BLR6339 (2 1/2" wide) orBLR7481 (3" wide). For a standard bar blade option use our part number BLR6939.

Copperhead

Copperhead Mulcher Bar Blade,
